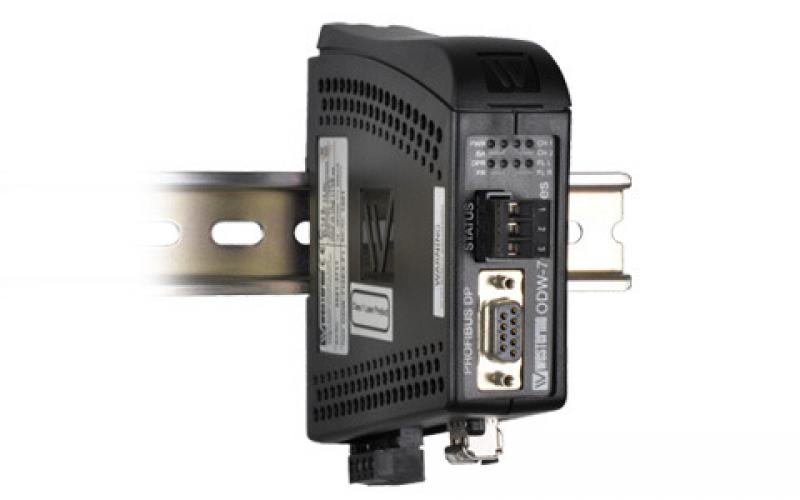

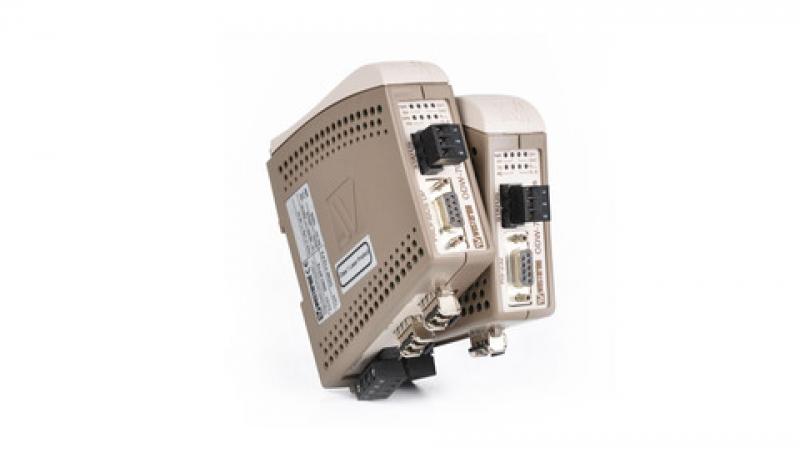

The ODW-710-F2 has been designed to allow the use of fibre optic cables on Profibus DP networks. The design allows the use of a range of Westermo verified SFP (Small Form Pluggable) transceivers which can provide solutions with, for example, only a single fibre or distances up to 120 km. Both multidrop networks and redundant rings can be formed using a mixture of transceiver types.
This unit has been designed for industrial use where the requirement is for a long and reliable service life in a harsh environment. To ensure this reliable operation we manufacture using the highest quality components.
The ODW-710 can be used on all Profibus DP networks to extend the operational network size beyond the normal constraints of the copper cable. All the data rates defined in EN50170 are supported.
Large ring networks can be created to provide network resilience to guarantee system functionality even if a cable is damaged. The ring recovery time ensures that the network devices are not aware of the failure. The fault contact provides a method to communicate network failures.
| Status: | Active |
| Article number: | 3651-0711 |
| Ports: | 1 x Detachable screw terminal, Status 1 x PROFIBUS DP (RS-485) 1 x LC Duplex or LC Simplex, FX (Fibre) |
| Description: | Point-to-Point Fibre Converter, PROFIBUS |
| Warranty period: | 5 years |
| Service life, operating: | Operating, 10 years |
| EN 61000-6-1: | Immunity residential environments |
| EN 61000-6-2: | Immunity industrial environments |
| EN 61000-6-3: | Emission residential environments |
| EN 61000-6-4: | Emission industrial environments |
| EN 55022: | Emission IT equipment, class A |
| EN 55024: | Immunity IT equipment |
| FCC part 15: | Class A |
| EN 50121-4: | Railway signalling and telecommunications apparatus |
| IEC 62236-4: | Railway signalling and telecommunications apparatus |
| EN 61000-4-2, ESD: | Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated: | 10 V/m 80% AM (1 kHz), 80 – 800 MHz 20 V/m 80% AM (1 kHz), 800 – 1000 MHz 20 V/m 80% AM (1 kHz), 1400 – 2700 MHz |
| ENV 50204, RF field 900 MHz: | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz |
| EN 61000-4-4, fast transients: | Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge: | Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity: | Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-9, pulsed magnetic field: | Enclosure, 300 A/m, 6.4 / 16 μs pulse |
| EN 61000-4-11, Voltage dips and interruption: | AC power ports, 10 & 5 000 ms, interruption, 200 ms, 40% residual voltage, 500 ms, 70% residual voltage |
| EN 61000-4-16, Mains freq. 50 Hz: | Signal ports, 100 V 50 Hz line to earth |
| SS 436 15 03, Mains freq. 50 Hz: | Signal ports, 250 V 50 Hz line to line |
| EN 55022, radiated RF emission: | Enclosure, Class B |
| FCC part 15, radiated RF emission : | bEnclosure, Class A |
| EN 55022, conducted emission: | AC power ports, Class B DC power ports, Class A |
| FCC part 15, conducted emission: | AC power ports, Class B |
| Safety: | UL/CSA/IEC/EN |
| EN 60950-1, dielectric strength: | Signal port to all other isolated ports 2 kVrms 50 Hz 1min Power port to other isolated ports 3 kVrms 50 Hz 1min 2 kVrms 50 Hz 1min (@ rated power < 60V) |
| Temperature, operating: | –40 to +60°C (–40 to +140°F) |
| Temperature, storage: | –40 to +70°C (–40 to +158°F) |
| Humidity, operating: | 5 to 95% relative humidity |
| Humidity, storage: | 5 to 95% relative humidity |
| Enclosure: | UL 94, PC / ABS, Flammability class V-1 |
| Dimensions (W x H x D): | 35 x 121 x 119 mm (1.37 x 4.76 x 4.68 in) |
| Weight: | 0.26 kg |
| Degree of protection: | IP 21 |
| Cooling: | Convection |
| Mounting: | Horizontal on 35 mm DIN-rail |
| IEC 60068-2-6, vibration: | Operating, 7.5 mm, 5 – 8 Hz, 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock: | Operating, 15 g, 11 ms |
| Rated voltage: | 12 to 48 VDC and 24 VAC Operating voltage |
| Rated frequency: | DC and 48 to 62 Hz |
| Inrush current: | 0.2 A²s |
| Startup current: | 1.0 Apeak |
| Polarity: | Reverse polarity protected |
| Redundant power input: | Yes |
| Isolation to: | PROFIBUS DP and Status port |
| Connection: | Detachable screw terminal |
| Connector size: | 0.75 – 2.5 mm² (AWG 18 – 13). Connect the unit using at least 18 AWG (0.75 mm2) wiring |
| Shielded cable: | Not required |
| Port type: | Signal relay, changeover contacts |
| Rated voltage: | Up to 48 VDC |
| Operating voltage: | Up to 60 VDC |
| Contact rating: | 500 mA @ 48 VDC |
| Contact resistance: | < 50 m Ohm |
| Isolation to: | PROFIBUS DP and Power port |
| Connection: | Detachable screw terminal |
| Connector size: | 0.2 – 2.5 mm² (AWG 24 – 13) |
| Shielded cable: | Not required |
| Electrical specification: | EIA RS-485 / EN 50 170 |
| Data rate: | 9 600 bit/s, 19.2, 93.75, 187.5, 500 kbit/s, 1.5, 3, 6 and 12 Mbit/s |
| Data format: | 8 data bits, even parity, 1 stop bit, 11 bits total |
| Protocol: | PROFIBUS DP / EN 50170 |
| Data rate detection: | Yes, compliant with EN 50 170 |
| Retiming: | Yes |
| Turn around time: | In accordance with EN 50 170 |
| Transmission range: | ≤ 1200 m, depending on data rate and cable type (EIA RS-485) |
| Settings: | None, external termination and failsafe biasing |
| Protection: | Installation Fault Tolerant (up to ±60 V) |
| Isolation to: | Power and Status port |
| Connection: | 9-pin D-sub female |
| Shielded cable: | Not required |
| Conductive housing: | Isolated to all other circuits and housings |
