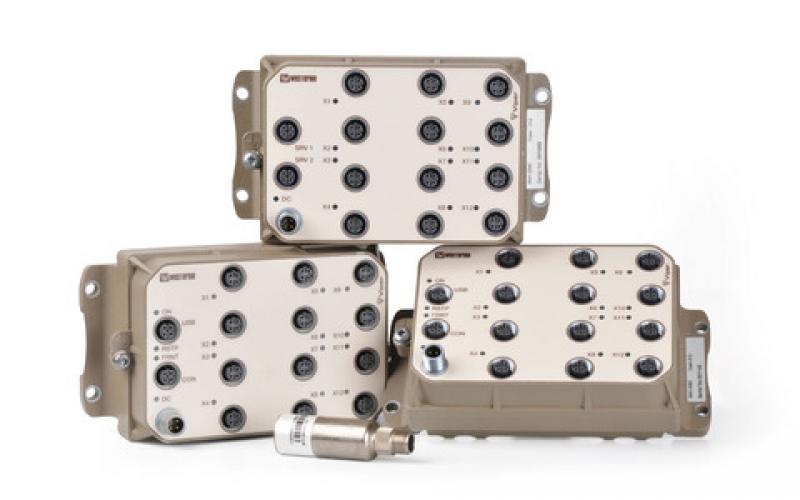

The Viper-012 is a basic unmanaged 12 port switch designed to meet the full requirements of the rail vehicle market. The incredibly compact and robust housing ensures the unit can be built into tight and environmentally hostile spaces.
As is critical for all equipment to be installed in rail vehicles, the Viper has been externally tested across the complete spectrum of standards required by EN50155.
Westermo understand that systems on railcars are required by the EN50155 standard to have a useful life of 20 years, so as well as using the highest quality components to deliver extended MTBF figures, we also implement features like the Gore-Tex® membrane in the IP65 enclosure to prevent water build up in the units. Due to the high vibration environment of the rail industry, we have also developed the Viper case with integral threading for the M12 connectors to ensure the IP65 seal is maintained for the life of the product.
The EN50155 standard requires mandatory performance and isolation testing. Not only does Westermo meet these, we exceed them in order to meet the additional manufacturer requirements for train control. Westermo’s Swedish factory has been building Ethernet switches for the railcar market for many years now and understands the measures that are required to provide the highest quality manufactured solutions.
| Status: | Active |
| Article number: | 3641-0540 |
| Ports: | 12 x 10/100BaseTX, M12 contact 1 x USB 2.0 host interface 1 x RS-232, 115.2 kbit/s |
| Description: | EN 50155 Routing Switch |
| Warranty period: | 5 Years |
| Environmental: | EN 61373 |
| MTBF, operating: | 636,000 hours, MIL-C217F2, GB, 25°C |
| Service life, operating: | 15 year |
| EN 61000-6-1: | Immunity residential environments |
| EN 61000-6-2: | Immunity industrial environments |
| EN 61000-6-3: | Emission standard for residential, commercial and light-industrial environments. |
| EN 61000-6-4: | Emission industrial environments |
| EN 55022 +A1: | Emission IT equipment |
| EN 55024, EN 61000-6-3: | Immunity IT equipment Emission residential environments |
| EN 61000-6-4: | Emission industrial environments |
| EN-50121-3-2: | Railway applications - EMC |
| FCC part 15: | Class B |
| EN 50121-4: | Railway signalling and telecommunications apparatus |
| EN-50121-3-2: | Railway applications –Rolling stock – apparatus |
| EN-50155: | Railway applications – Electronic equipment used on rolling stock |
| IEC 62236-4: | Railway signaling and telecommunications apparatus |
| EN 61000-4-2, ESD: | Enclosure Contact |
| EN 61000-4-4, fast transients: | Power port, ±5 kV Signal ports, ±5 kV Earth port, ±1 kV |
| EN 61000-4-5, surge: | Power port L-E |
| EN 61000-4-8, power frequency magnetic field: | Enclosure, 300 A/m |
| EN 61000-4-9, pulsed magnetic field: | Enclosure, 300 A/m |
| IEC 61000-4-3, RF field AM modulated: | Enclosure, 20 V/m @ (80 MHz – 2.7 GHz), 1 kHz sine, 80% AM |
| EN 61000-4-6, conducted RF immunity: | Power port, 10 V, 80% AM, 1 kHz |
| EN 55022, radiated RF emission: | Enclosure, class B Power port, class B Ethernet ports, class B |
| FCC part 15, radiated RF emission: | Enclosure, class B |
| EN 60950-1, dielectric strength: | Power port to all other ports, 1.5 kV ACrms, 50 Hz, 1 min Ethernet ports to all other ports, 1.5 kV ACrms, 50 Hz, 1 min |
| Safety: | EN 60950-1, IT equipment |
| Temperature, operating: | –40 to +70ºC (–40 to +158ºF) |
| Temperature, storage: | –50 to +85°C (–58 to +185°F) |
| Humidity, operating: | 5 to 95 % relative humidity |
| Humidity, storage: | 5 to 95 % relative humidity |
| Enclosure: | Zinc, fire enclosure. |
| Dimensions (W x H x D): | 175 x 62.5 x 100 mm (6.9 x 2.5 x 3.9 in) |
| Weight: | 1.4 kg |
| Degree of protection: | IP 65 |
| Cooling: | Convection |
| IEC 60068-2-6, vibration: | Non operating long life simulation, 7.9 m/s² (RMS) 5 – 150 Hz |
| Vibration, random functional: | Operating, 1 m/s² (RMS) 5 – 150 Hz |
| IEC-60068-2-27, shock: | Operating, 5 g, 30 ms |
| Operating voltage: | Rated |
| Rated current: | 350 mA @ 24 V and 90 mA @ 110 V |
| Rated frequency: | DC |
| Inrush current: | 1 mA²s @ 24V and 6 mA²s @ 110V |
| Startup current: | 400 mA |
| Polarity: | Reverse polarity protected |
| Redundant power input: | Yes |
| Isolation to: | 1500 VAC rms to all other |
| Connection: | 4 pin male M12 A-coded connector, use Westermo cable 3146-1106 for 1.5 m 3146-1107 for 5 m |
| Connector size: | M12, recommended cable area 0.5 mm² recommended (minimum 0.25 mm²), cable dimensions depend on choice of M12 connector |
| Electrical specification: | IEEE IEEE std 802.3. 2005 Edition |
| Data rate: | 10 Mbit/s, 100 Mbit/s, manual or auto |
| Duplex: | Full or half, manual or auto |
| Circuit type: | TNV-1 |
| Transmission range: | Up to 150 m with CAT5e cable or better |
| Connection: | 4-pin M12 D-code, auto MDI/MDI-X, use e g Westermo cable 3146-1100 M12-M12 – 1 m 3146-1101 M12-M12 – 5 m 3146-1103 RJ45-M12 – 1 m 3146-1104 RJ45-M12 – 5 m |
| Shielded cable: | Not required, but recommended in severe electromagnetic environments |
| Conductive housing: | Yes |
| Number of ports: | 12 |
| Isolation to: | Service ports that must not be used Ethernet ports, 1500 VAC rms DC, 1500 VAC rms No isolation between SRV1 and SRV2 |
