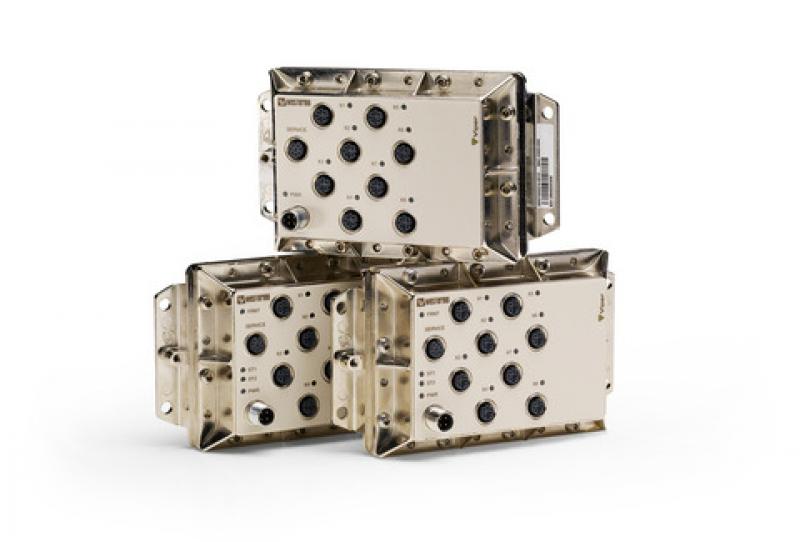

The Viper is a product family of rugged Ethernet switches designed for applications with severe operating conditions and extreme environments. The Viper meets the EN 50155 standard for electronic equipment used in railway applications. The super slim and extra robust housing is sealed to IP 65 and together with an MTBF (Mean Time Between Failure) calculated to more than a 100 years makes these units ideal for situations where mechanical stress, moisture, condensation, dirt or continuous vibrations could adversely affect the function of standard Ethernet switches. This line of products includes two eight-port managed and one unmanaged Ethernet switches with or without ring functionality.
Our unique FRNT (Fast Recovery of Network Topology) technology on Viper 408 is the fastest protocol on the market to re-configure a large network in the event of any failure of a link or hardware. That is why the Viper-series is used in safety critical applications such as railway systems, tunnels and traffic signal control.
Real-time properties are implemented in order to achieve determinism for real time critical applications. The switches support QoS (Quality of Service) with four priority queues and strict priority scheduling as well as HoL (Head of Line Blocking Prevention). All to ensure that the data network is deterministic.
| Status: | Active |
| Article number: | 3641-0360 |
| Ports: | 8 x 10/100BaseTX, M12 contact |
| Description: | Ultra slim M12 switch platform |
| Warranty period: | 5 Years |
| MTBF, operating: | MIL-HDBK- 217F, operating Ground Benign 103 years @ 20ºC 100 years @ 40ºC 90 years @ 60ºC Ground Mobile 5.92 years @ 20ºC 5.91 years @ 40ºC 5.88 years @ 60ºC |
| Service life, operating: | Operating, 10 year |
| EN 61000-6-1: | Immunity residential environments |
| EN 61000-6-2: | Immunity industrial environments |
| EN 55024, EN 61000-6-3: | Immunity IT equipment Emission residential environments |
| EN 61000-6-4: | Emission industrial environments |
| EN-50121-3-2: | Railway applications - EMC |
| FCC part 15: | Class B |
| EN 50121-4: | Railway signalling and telecommunications apparatus |
| IEC 62236-4: | Railway signalling and telecommunications apparatus |
| EN 61000-4-2, ESD: | Enclosure contact, ± 6 kV (crit A) Enclosure air, ± 8 kV (crit A) |
| IEC 61000-4-3, RF field, AM modulated: | Enclosure 20 V/m 80% AM (1 kHz) 80 – 2500 MHz (crit A) |
| EN 61000-4-4, fast transients: | Ethernet ports, ± 2 kV (crit A) Power port, ± 2 kV (crit A) Earth port, ± 2 kV (crit A) |
| EN 61000-4-5, surge: | Fault port, ± 2 kV line to earth (crit A) Ethernet ports, ± 2 kV line to earth (crit A) Power port, ± 2 kV line to earth, ± 2 kV line to line (crit A) |
| EN 61000-4-6, conducted RF immunity: | Ethernet ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A) Power port, 10 V 80% AM (1 kHz), 0.15 – 80 MHz (crit A) |
| EN 61000-4-8, power frequency magnetic field: | Enclosure 1000 A/m 50 Hz 300 A/m 16.7 Hz, 60 Hz, DC (crit A) |
| EN 61000-4-9, pulsed magnetic field: | Enclosure, 300 A/m (crit A) |
| EN-50155, voltage dips and interruption: | DC power ports, 10 ms interruption, 100 ms ±40% voltage variation |
| EN 55022, radiated RF emission: | Enclosure, class B |
| FCC part 15, radiated RF emission: | Enclosure, class B |
| EN 55022, conducted emission: | DC power port & Ethernet ports, class B |
| FCC part 15, conducted emission: | DC power port, class B |
| Safety: | EN 60950-1, IT equipment |
| EN 50155, dielectric strength: | Ethernet ports to other isolated ports, 707 VDC 1 min Power & Fault port to other isolated ports, 2121 VDC 1 min |
| Temperature, operating: | –40 to +70ºC (–40 to +158ºF) |
| Temperature, storage: | –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating: | 5 to 95% relative humidity |
| Humidity, storage: | 5 to 95% relative humidity |
| Enclosure: | UL 94, nickel coated zinc, flammability class V-1 |
| Dimensions (W x H x D): | 175 x 100 x 50 mm |
| Weight: | 0.8 kg |
| Degree of protection: | IP 65 when all ports are protected/connected else IP 40 |
| Cooling: | Convection |
| Mounting: | Wall mounted |
| Vibration, random simulated long life: | Vertical |
| Vibration, random functional: | Vertical |
| Shock, half sine pulses: | Vertical |
| Shock, sawtooth: | Vertical |
| Operating voltage: | Up to 110 VDC |
| Rated voltage: | 24 to 110 VDC |
| Rated current: | 40 mA @ 110 VDC 140 mA @ 24 VDC |
| Rated frequency: | DC |
| Inrush current: | Max 0.02 A2s @ 24 – 110 VDC |
| Startup current: | 7 Apeak @ 24 – 110 VDC |
| Polarity: | Reverse polarity protected |
| Redundant power input: | No |
| Isolation to: | Connections X1 – X8 and to ground, 1500 VAC. Fault relay belongs to the same isolation group as the power supply lines (fault relay signals are also contained within PWR). |
| Connection: | 4 pin male M12 connector with A-code |
| Connector size: | M12, recommended cable area 0.5 mm2 recommended (minimum 0.25 mm2), cable dimensions depend on choice of M12 connector |
| Shielded cable: | Not required, twisted pair is recommended |
| Electrical specification: | IEEE std 802.3. 2000 Edition |
| Data rate: | 10 Mbit/s or 100 Mbit/s, manual or auto |
| Duplex: | Full or half, manual or auto |
| Circuit type: | TNV-1 |
| Transmission range: | 100 m / 328 ft |
| Isolation to: | Other Ethernet ports, 500 VAC PWR, 1500 VAC |
| Galvanic connection to: | None, except for shielded contact to housing |
| Connection: | 4-pole M12 female with D-code |
| Shielded cable: | Not required, twisted pair is recommended |
| Conductive housing: | Nickel plated zinc, metal housings of X1-X8 also connected to the housing |
| Number of ports: | 8 Ethernet (X1-X8) |
