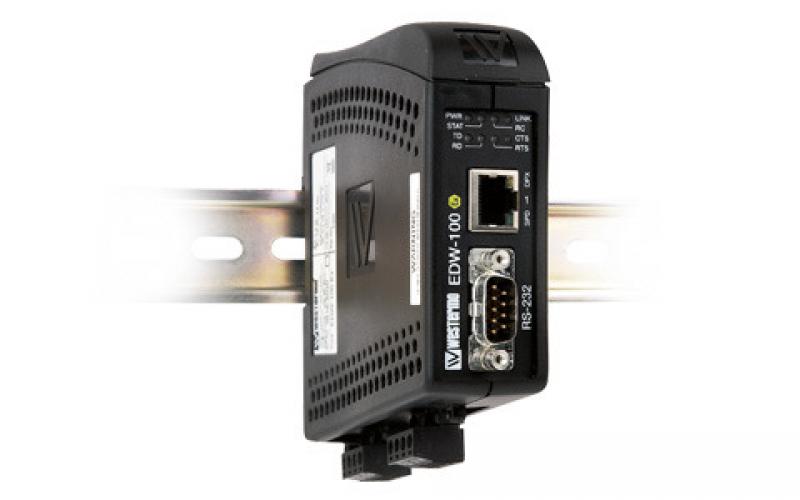

The EDW-100 is a serial to Ethernet converter designed to allow RS-232, RS-422 and RS-485 serial devices to communicate via TCP/IP Ethernet networks. DIP switches are used for configuration of RS-422/485 as well as for Ethernet port settings; the password protected web interface is used for all other settings. Diagnostic information can be accessed via a Telnet session with more basic information offered on LEDs.
The EDW-100 is designed for use in heavy duty industrial applications. The wide power range, galvanic isolation, transient protection and the design of the termination and fail safe guarantees communication in the worst environments.
Only industrial grade components are used which gives the EDW-100 an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. The EDW-100 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
The EDW-100 supports UDP, TCP client and TCP server connections between units or to a PC virtual COM port. It also has an array of special modes, including Single Client Mode, Dual TCP Connection, DSR Connection, RST on TCP Closure, RTS Control, Break Signalling and Last Calling allowing the unit to be used in a wide range of complex applications.
The Modbus TCP gateway implementation in the EDW-100 supports Modbus RTU and Modbus ASCII in both master
and slave modes.
| Status: | Active |
| Article number: | 3616-0020 |
| Ports: | 1 x 4-position detachable screw terminal, RS-422/485 1 x 9-pin D-sub, RS-232 1 x RJ-45, Ethernet |
| Description: | Serial Adapter |
| Warranty period: | 5 Years |
| Service life, operating: | Operating, 10 year |
| EN 61000-6-2: | Immunity industrial environments |
| EN 61000-6-4: | Emission industrial environments |
| EN 55024: | Immunity IT equipment |
| EN 50121-4: | Railway signalling and telecommunications apparatus |
| IEC 62236-4: | Railway signalling and telecommunications apparatus |
| EN 61000-4-2, ESD: | Enclosure contact, ± 6 kV Enclosure air, ± 8 kV |
| IEC 61000-4-3, RF field AM modulated: | Enclosure 20V/m 80% AM (1 kHz), 80 – 2 000 MHz 12V/m 80% AM (1 kHz), 2 000 – 2 700 MHz |
| ENV 50204, RF field 900 MHz: | Enclosure, 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz m |
| EN 61000-4-4, fast transients: | Signal ports, ± 2 kV Power ports, ± 2 kV |
| EN 61000-4-5, surge: | Signal ports unbalanced, ± 2 kV line to earth, ± 2 kV line to line Signal ports balanced, ± 2 kV line to earth, ± 1 kV line to line Power ports, ± 2 kV line to earth, ± 2 kV line to line |
| EN 61000-4-6, conducted RF immunity: | Signal ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz Power ports, 10 V 80% AM (1 kHz), 0.15 – 80 MHz |
| EN 61000-4-9, pulsed magnetic field: | Enclosure, 1000 A/m, 6.4 / 16 µs pulse |
| EN 61000-4-29, voltage dips and interruption: | DC power ports 10 & 100 ms, interruption 10 ms, 30% reduction 10 ms, 60% reduction +20% above & –20% below rated voltage |
| EN 55022, radiated RF emission: | Enclosure, class A |
| FCC part 15, radiated RF emission: | Enclosure, class A |
| EN 55022, conducted emission: | DC power ports, class B |
| EN 60950-1, dielectric strength: | Signal port to other isolated ports, 1.5 kVrms 50 Hz 1 min Power port to other isolated ports, 2 kVrms 50 Hz 1 min |
| Safety: | UL/CSA/IEC/EN 60950-1, IT |
| Temperature, operating: | Operating, –25 to +70°C (–13 to +158°F) |
| Temperature, storage: | Storage & Transport, –40 to +70ºC (–40 to +158ºF) |
| Humidity, operating: | Operating, 5 to 95% relative humidity |
| Humidity, storage: | Storage & Transport, 5 to 95% relative humidity |
| Enclosure: | UL 94, PC / ABS, flammability class V-1 |
| Dimensions (W x H x D): | 34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in) |
| Weight: | 0.2 kg |
| Degree of protection: | IP 21 |
| Cooling: | Convection |
| Mounting: | Horizontal on 35 mm DIN-rail |
| IEC 60068-2-6, vibration: | Operating 7.5 mm, 5 – 8 Hz 2 g, 8 – 500 Hz |
| IEC-60068-2-27, shock: | Operating, 15 g, 11 ms |
| Rated voltage: | 12 to 48 VDC |
| Operating voltage: | 10 to 60 VDC |
| Rated current: | 250 mA @ 12 VDC 125 mA @ 24 VDC 63 mA @ 48 VDC |
| Rated frequency: | DC |
| Inrush current: | 0.3 A²s @ 48 VDC, @ 10 ms |
| Startup current: | - |
| Polarity: | Reverse polarity protected |
| Redundant power input: | Yes |
| Isolation to: | All other 2 k Vrms |
| Connection: | Detachable screw terminal |
| Connector size: | 0.2 – 2.5 mm2 (AWG 24 – 12) |
| Shielded cable: | - |
| Electrical specification: | EIA RS-485 2-wire or 4-wire twisted pair |
| Data rate: | 300 bit/s to 115.2 kbit/s |
| Data format: | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. |
| Protocol: | Transparent, optimised by packing algorithm |
| Retiming: | Not applicable |
| Turning time: | < 3 bits |
| Circuit type: | TNV-1 |
| Transmission range: | ≤ 1200 m, depending on data rate and cable type (EIA RS-485) |
| Settings: | 120 Ω termination and fail-safe biasing 680 Ω |
| Protection: | Installation Fault Tolerant (up to ±60 V) |
| Isolation to: | Power |
| Connection: | Detachable screw terminal |
| Connector size: | 0.2 – 2.5 mm² (AWG 24 – 12) |
| Shielded cable: | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing: | No |
| Electrical specification: | EIA RS-232 |
| Data rate: | 300 bit/s – 115.2 kbit/s |
| Data format: | 7 or 8 data bits, Odd, even or none parity, 1 or 2 stop bits. |
| Protocol: | Transparent, optimised by packing algorithm |
| Retiming: | Not applicable |
| Circuit type: | SELV |
| Transmission range: | 15 m / 49 ft |
| Isolation to: | Power 2 kV Ethernet 1 1.5 kVrms |
| Connection: | 9-pin D-sub male (DTE) |
| Shielded cable: | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing: | Isolated to all other circuits |
| Number of ports: | 1 |
| Electrical specification: | IEEE std 802.3. 2000 Edition |
| Data rate: | 10 Mbit/s or 100 Mbit/s, auto-negotiated or manually set by DIP-switches |
| Protocol: | UDP, TCP, ICMP, HTTP and ARP |
| Duplex: | Full- or half duplex, auto-negotiated or manually set by DIP-switches |
| Circuit type: | TNV-1 |
| Transmission range: | 100 m |
| Isolation to: | Power 2 kVrms RS-232 1.5 kVrms RS-422/485 1.5 kVrms |
| Connection: | RJ-45 shielded, auto MDI/MDI-X |
| Shielded cable: | Not required, except when installed in Railway applications as signalling and telecommunications apparatus and located close to rails. |
| Conductive housing: | Isolated to all other circuits |
